Rezult lift-and-slide doors

Rezult lift-and-slide doors

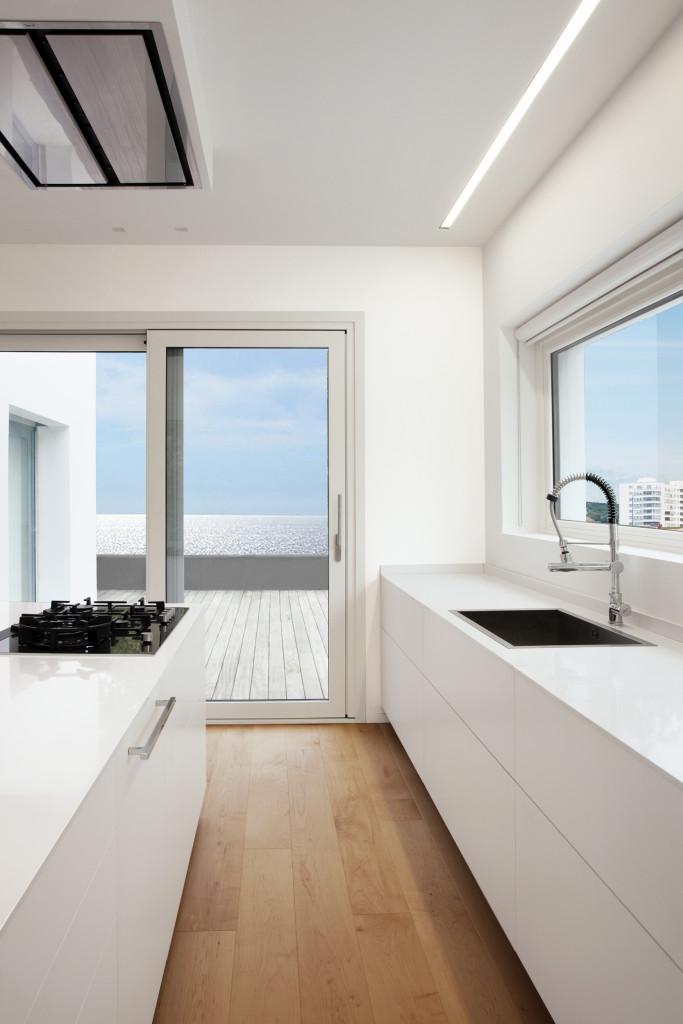

The HS-SLIM 80 lift-and-slide door system from the Italian company UNIFORM was specially designed for easy access to terraces, balconies and courtyards. Key benefit is space saving. The sash opens parallel to the “blank” glass unit of the glazing, without taking up additional space in the room.

Besides the shape and size, the colors and the elegant appearance of the HS-SLIM 80 UNIFORM door system play a special role. On the one part, there are stylish weather-resistant aluminum trims available in a wide range of colors. On the other part, it is a natural wood securely wrapped in PVC foil. The profile has high thermal insulation and sound insulation qualities, and the surface itself is easy to clean.

The aluminum pads attach easily to the timber, ensuring reliability and durability.

The optimal arrangement of the sealing zones guarantees effective thermal protection, especially in the area of the sash junction, which prevents the penetration of cold air.

Lift-and-slide doors HS-SLIM 80 UNIFORM provides the convenience of barrier-free movement due to the composite warm threshold, meeting all modern requirements and remaining completely sealed. Besides their high functionality, lift-and-slide doors are equipped with an anti-intrusion system with a burglary resistance class up to RC 2.

HS-SLIM 80 UNIFORM can be designed with a different number of leaves and opening patterns. In addition, it is possible to install hardware for mechanical opening or electric drive. In addition, it is possible to install hardware for mechanical opening or electric drive.

The modern energy-saving glass unit retains heat in the room due to a special innovative spraying applied to the inner surface of the glass.

MAIN TECHNICAL CHARACTERISTICS OF SYSTEM HS-SLIM 80:

MOUNTING FRAME WIDTH: 199 MM

DOOR MOUNTING WIDTH: 88 MM

RESISTANCE FACTOR OF HEAT TRANSFER TO Rw = 1.31 m2K / W, WHICH CORRESPONDS THERMAL CONDUCTIVITY Uw = 0.76 W / m2K

SIZE: 6.0 Х 2.70 М

MAXIMUM GLAZING THICKNESS: up to 52 mm

COMPOSITE THRESHOLD HEIGHT: 4-29 mm

HACK RESISTANCE CLASS up to RC2

SOUND INSULATION (Rw = 43 dB)
